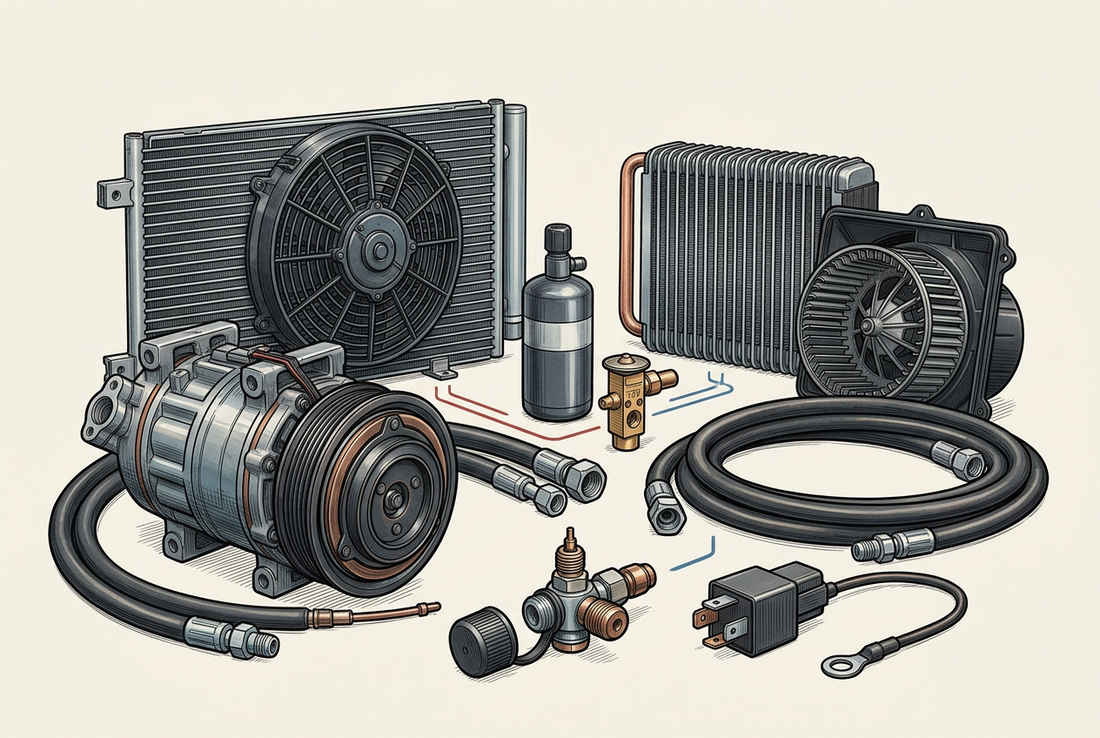

How classic-car air conditioning works: the parts, the cycle and what goes wrong

“Sorry sir, you need a new compressor.” Sometimes that diagnosis is correct. But warm air from the dashboard is not, by itself, evidence that the compressor has failed.

A leaking service-port valve, a poor electrical ground, a failed relay or inadequate airflow through the condenser can leave you with disappointing cooling and a perfectly serviceable compressor. The sensible starting point is to understand what the system is trying to do, then establish where it has stopped doing it.

This guide explains conventional classic-car air conditioning, with the UAE’s heat, traffic and older vehicles in mind. It is a guide to understanding a diagnosis, not a set of instructions for opening a pressurised refrigerant circuit.

Air conditioning moves heat. It does not manufacture cold.

The evaporator inside the cabin absorbs heat into the refrigerant. The compressor circulates that refrigerant and raises its pressure. The condenser at the front of the vehicle releases the collected heat, plus the heat associated with the compressor’s work, into the outside air.

Pressure changes allow the refrigerant to evaporate at a low temperature inside the cabin and condense at a higher temperature outside it. Both changes of state are central to the process. Refrigerant is not engine coolant, and the two circuits must never be confused.

Follow the refrigerant around the system

1. Compressor: circulation and pressure

The compressor takes in low-pressure refrigerant vapour from the evaporator side and discharges hot, high-pressure vapour towards the condenser. It is designed to compress gas, not a slug of liquid.

Many classic-car systems use a belt-driven compressor with an electromagnetic clutch. The pulley can turn with the engine while the compressor shaft remains disengaged. That distinction matters: a turning pulley does not prove the compressor is pumping, and a clutch that does not engage does not prove the compressor is mechanically defective.

Internal wear, lubrication problems, contamination, shaft-seal leaks and mechanical seizure are genuine compressor faults. The clutch coil, clutch clearance, pulley bearing and electrical supply are separate things to assess. Whether these can be repaired separately depends on the unit and the availability of suitable parts.

2. Condenser: getting the heat outside

The condenser is a heat exchanger, usually mounted ahead of the engine radiator. Hot refrigerant gives up heat to the passing air and condenses into a high-pressure liquid.

It needs airflow as well as an intact refrigerant circuit. Dirt between heat exchangers, damaged fins, a weak fan or a failed fan control can impair cooling, particularly while stationary. In UAE traffic, a fault that was barely noticeable in milder conditions can become very obvious.

Cooling that improves on the move makes condenser airflow worth investigating, but it is a clue rather than proof. Engine speed, refrigerant charge and other operating conditions also change when you drive.

3. Receiver-drier: moisture control on an expansion-valve system

A receiver-drier sits on the high-pressure liquid side of a typical expansion-valve system. It provides a refrigerant reservoir, filters contaminants and contains desiccant to absorb moisture.

Moisture can contribute to corrosion and interfere with metering as the refrigerant temperature falls. A restricted drier can also impede refrigerant flow. Desiccant capacity is finite: leaving the circuit open to humid air is not harmless.

A drier is not automatically the cause of poor cooling, nor is it a substitute for repairing a leak. Replacement should follow the applicable service procedure, especially after circuit opening or contamination.

4. Expansion valve or orifice tube: the metering point

The metering device separates the high- and low-pressure sides. The pressure drop produces a cold liquid-and-vapour mixture that can absorb heat in the evaporator.

A thermostatic expansion valve varies flow in response to conditions at the evaporator outlet. A fixed orifice tube has a calibrated opening; the rest of the system controls operation around it. They do the same broad job but are not interchangeable components.

Debris, moisture-related icing or a valve fault can disturb flow. A restriction can cause poor cooling even when the compressor is operating. Pressure readings need interpretation alongside temperatures, airflow and the specific system layout.

5. Evaporator: taking heat out of the cabin

The evaporator is the heat exchanger in the heater/A/C housing. Refrigerant evaporates inside it as it absorbs heat from cabin air blown across its fins. Moisture in that air can condense on the cold surface and drain beneath the vehicle, which is why a puddle of clean water after using the A/C can be normal.

An evaporator can leak, become obstructed on its air side or ice up. A blocked condensate drain can send water where it does not belong. Access can be labour-intensive, so a diagnosis of an evaporator leak deserves supporting evidence rather than an assumption based on the absence of a visible under-bonnet leak.

6. Accumulator: the alternative low-side arrangement

Typical fixed-orifice systems use an accumulator between the evaporator and compressor rather than a receiver-drier in the liquid line. It helps keep liquid refrigerant from reaching the compressor, contains desiccant and manages oil return.

Do not picture a receiver-drier and accumulator as two mandatory cans fitted to every vehicle. These are different circuit arrangements. Identify what the car actually has before ordering parts.

The parts outside the refrigerant circuit matter too

The blower moves cabin air across the evaporator. Resistors or electronic controls regulate its speed. Distribution doors, recirculation flaps and heater controls determine where that air travels and whether it is reheated before reaching the vents.

Weak airflow is therefore a different starting point from strong airflow that remains warm. Look at blower operation, obstructions, evaporator icing and the air distribution system. Check a cabin filter only if the vehicle actually has one: many classics do not.

On systems with an electromagnetic clutch, fuses, relays, connectors, grounds and pressure or temperature controls influence compressor engagement. The exact wiring and protection strategy vary. Some cars use relatively simple switches; others involve electronic climate-control logic.

Before you condemn the compressor

Start with the symptom, not the replacement part

Does the blower move air normally? Is it warm immediately, or does cooling fade after a while? Does it cool on the road but not in traffic? Is there a noise with the A/C switched off, only when engaged, or both? These observations help a technician choose the next test.

A good diagnosis connects the symptom to measurements. “The compressor does not engage” describes what is happening. It does not yet explain why.

Check for leaks, including the small service valves

Service ports contain sealing arrangements, often including Schrader-type valve cores, that allow gauges and charging equipment to connect. A leaking core or another service-port seal can allow refrigerant to escape. The repair part may be inexpensive compared with a compressor, although access, diagnosis and refrigerant handling still involve labour.

As the charge falls, cooling can deteriorate. On a system with low-pressure protection, sufficiently low pressure may prevent clutch engagement. In that situation, the compressor may be obeying a protective control rather than failing.

Ask the workshop to include service connections in its leak inspection, along with hoses, joints, compressor seals, condenser and evaporator. The correct sealing cap also matters; a missing or damaged cap should not simply be ignored. A tyre valve core is not a substitute for a correctly specified A/C service component.

Leaks can be investigated with suitable electronic detectors, approved UV dye or professional pressure-testing methods. The method depends on the system and its condition. A vacuum hold alone does not establish that every operating-pressure leak has been excluded. HELLA’s technical explanation of A/C leak detection describes the main workshop approaches.

Check the wiring and grounds under operating conditions

A poor connection can look acceptable until current is demanded. A technician should follow the vehicle’s wiring diagram and test supply and ground paths under load, including voltage drop where appropriate, rather than relying only on a continuity beep.

A relay fault is one possible cause, not a universal answer. The Defender compressor-clutch relay is an example of a control component worth understanding before blaming the compressor. Its suitability and the vehicle’s actual circuit must be confirmed before replacement.

If power is being deliberately withheld, find out why. Pressure protection, an evaporator temperature control or another vehicle-specific input may be preventing operation correctly. Do not bridge protection switches to force the compressor to run.

Establish the refrigerant charge properly

Pressure readings alone do not tell you the precise mass of refrigerant in the system. Ambient temperature, airflow, engine speed and system design affect those readings. Where charge is in doubt, a workshop should identify the refrigerant, recover it with suitable equipment and follow the correct evacuation and measured charging procedure.

Undercharging and overcharging can both cause trouble. Repeatedly adding refrigerant without investigating the loss is not a complete repair. Nor is adding oil “for good measure”: the oil type and quantity matter.

Prove a pumping or mechanical fault

With charge, airflow, controls and drive operation assessed, the technician can evaluate whether the compressor develops the expected pressure difference under the specified test conditions. Abnormal readings still need interpretation: a metering fault can alter the same pressures.

Seizure, confirmed internal damage or demonstrably poor pumping can justify replacement. If internal failure has spread debris, the repair must also address contamination and the cause of failure. A new compressor fitted into a dirty or incorrectly serviced circuit can fail again.

What common symptoms can tell you

Cold while driving, warm at idle

Investigate condenser airflow, fan operation and dirty or obstructed heat exchangers, while also checking charge and operating pressures. On an applicable R107 installation, an auxiliary fan motor is one relevant component, but its power supply and controls need checking before the motor is condemned.

Strong airflow, little cooling

Possible causes include inadequate charge, a compressor that is not being driven or commanded on, poor heat rejection, a refrigerant-flow problem or unwanted heater mixing. Warm vents do not distinguish between these on their own.

Airflow fades after initially cooling well

Evaporator icing is one possibility, particularly if airflow returns after switching the A/C off while leaving the blower running. Blower faults and air-distribution problems can also produce changing airflow. The reason for any icing still needs diagnosis.

Cooling disappears again after a recharge

Ask where the refrigerant is going. Service ports, hose crimps, O-rings, component seals and heat exchangers are all candidates. A suitable Defender A/C O-ring kit illustrates the small sealing parts involved, not a reason to replace every seal without locating the fault. Correct size, material and lubricant are essential.

A noise near the compressor

Distinguish the pulley bearing, clutch, belt drive and compressor internals. Nearby bearings and belt accessories can mislead the diagnosis. A change when the clutch engages is useful evidence, but not a complete verdict.

GMT400, R107 and Defender: same principle, different details

Many original GMT400 applications use a fixed-orifice tube and accumulator arrangement. R107 and Defender installations commonly use an expansion valve and receiver-drier, but year, original equipment, market specification and aftermarket modifications matter. A decades-old vehicle may no longer have the system described by its original parts catalogue.

R107 compressor and climate-control arrangements vary across production. Defender factory and aftermarket A/C installations can differ substantially. Identify the installed compressor, metering arrangement, refrigerant and control system before making a parts list.

For a closer look at each platform, see our GMT400 A/C and R134a retrofit guide, Mercedes-Benz R107 A/C guide and Defender V8 A/C guide. Use the workshop documentation for the actual year and installed equipment for wiring, test conditions and specifications.

R12 to R134a: more than changing the fittings

A conversion is not simply a matter of adding different gas. Refrigerant identification, oil compatibility and quantity, seals, hoses, drier, charging procedure and condenser performance all need consideration. Whether a component can be retained depends on its design and condition, not a blanket rule that everything must be replaced.

There is no single charge percentage or pressure target that should be applied to every converted classic. Use a documented procedure for the particular installation. Proper refrigerant identification is especially important on a vehicle with an uncertain service history.

Questions worth asking before approving a major repair

• What test shows that this component has failed?
• If the compressor is not engaging, is the fault electrical, mechanical, or a protective control responding to another problem?
• Where was a leak found, and were the service ports checked?
• Were the fan, condenser airflow and electrical grounds tested?
• What refrigerant and oil are currently in the system, and what specification will be used?
• If the compressor has failed internally, how will contamination and the original cause be addressed?

These are not accusations. A good A/C specialist should be able to explain the findings and why the proposed repair follows from them.

What an owner can safely observe

Note when cooling deteriorates, which blower speeds work, whether airflow changes and whether unusual noises occur. With the engine off and cool, look for obvious debris at the front heat exchangers and visibly damaged wiring without disturbing the circuit.

Keep hands and tools away from belts and fans. Electric fans can start unexpectedly. Do not loosen refrigerant fittings, depress service valves, substitute tyre valve cores, bypass protective switches or vent refrigerant. Cheap parts do not necessarily mean a safe DIY repair: service-valve work may require refrigerant recovery or specialist isolation equipment.

Further technical reading

DENSO’s air-conditioning and engine-cooling overview explains heat transfer and the main refrigerant-circuit components. HELLA TECH WORLD’s car air-conditioning guide covers circuit operation, troubleshooting and workshop considerations. These are general supplier references, not marque-specific workshop manuals.

The aim is not to avoid replacing a failed compressor. It is to avoid replacing a good one. Find the fault, understand the evidence, and buy the parts the diagnosis actually calls for.
