Why AC Failure on a GMT400 Is a Different Problem in the UAE
In most climates, a failed air conditioner is an inconvenience. In the UAE, with summer ambient temperatures regularly exceeding 45°C, it makes the vehicle effectively undrivable. A GMT400 without functioning AC is not a truck you can use for daily errands, school runs, or work, it's a truck parked until the problem is fixed.
These systems are also now three decades old. Hoses that were never as leak-resistant as later barrier-hose designs, condensers with corroded or sand-clogged fins, compressor clutches that have cycled on and off through multiple UAE summers something failing at this point isn't bad luck. It's the expected outcome. This guide covers both failure and the refrigerant conversion that belongs alongside any serious repair.
Compatibility — Does This Guide Apply to Your Truck?
| Vehicle | Years | Covered |
|---|---|---|
| C/K 1500 4x4 | 1988-1998 | Yes |
| Blazer | 1992-1994 | Yes |
| Tahoe / Yukon | 1995-1999 | Yes |
| Suburban (front system only) | All GMT400 years | Yes |
| Suburban rear dual air (C69) | All GMT400 years | Out of scope |
Front AC architecture is shared across the entire platform. What matters is model year, not body style. Suburban owners with the factory dual-zone rear option should treat the rear system as a separate job.
Know the Signs: Common Failure Symptoms
- Compressor clutch won't engage, or engages with visible resistance, seized or failed internally
- Clutch cycling on and off rapidly, low refrigerant, pressure switch fault, or electrical issue
- Air that runs but never gets properly cold, low charge, failed orifice tube, or weak compressor
- Musty smell from the vents, microbial growth in the evaporator, often worsened by UAE humidity spikes
- Oily residue or staining at fittings, refrigerant leak, often at aged o-rings or hose ends
- System won't hold vacuum during service, leak somewhere in the circuit
The Refrigerant Situation: R12 vs R134a
This is not optional reading. Get this wrong and you will order the wrong parts.
| Model Year | Factory Refrigerant | What to Do |
|---|---|---|
| Pre-1994 | R12 | Verify by service port shape before ordering anything |
| 1994 | R12 or early R134a | Transition year, check, don't assume from the year |
| 1995 onward | R134a (factory) | Standard R134a service, no conversion needed |
How to confirm without guessing: R134a service ports are physically larger than R12 ports. Check the port size before ordering a single component.
R12 is no longer manufactured. Remaining stocks are expensive, increasingly scarce, and not a sensible long-term solution for a daily-use vehicle in the GCC. If the system needs to be opened for any reason, and a failed compressor absolutely requires opening the system, this is the correct point to convert properly rather than chase R12 top-ups indefinitely.
Critical: What a Failed Compressor Actually Requires
This is the most important section in the guide. Read it before buying parts.
If the compressor has failed internally or seized, this is not a swap-the-compressor job. Metal debris from a seized compressor circulates through the condenser, both AC lines, and the evaporator core. Fit a new compressor into a contaminated system without flushing everything first and the new compressor will very likely fail again within weeks.
This is the single most common reason a second compressor dies almost immediately after the first one failed, the system was never properly flushed.
The correct sequence after an internal compressor failure:
- Flush the condenser, both AC lines, and the evaporator core with dedicated AC flush solvent
- Replace the compressor, orifice tube, and accumulator/receiver-drier together, not the compressor alone
- Replace every o-ring at every joint opened during the work
GM's own TSB #331226 confirms a healthy R12 compressor does not need replacing purely for a refrigerant retrofit, but healthy and just seized are not the same starting point, and on a truck this age in this climate, the latter is common.
A Note on Oil Type: PAG vs Ester
There is genuine disagreement in the GMT400 community on this, and this guide won't pretend otherwise.
PAG oil is the standard for R134a systems. However, it is not fully compatible with residual mineral oil from the original R12 system, and getting every trace of mineral oil out of an old system is close to impossible without replacing every component.
Ester oil tolerates that residual contamination better, which is why some experienced owners specifically choose it for R12-to-R134a retrofits. Others report good long-term results with PAG after a thorough flush.
The right answer: Ask your compressor supplier for their specific recommendation, and be consistent, whichever oil you choose, use the same type across every component you fill or top up. Mixing oil types causes problems.
UAE-Specific Failure Patterns
Heat-accelerated component degradation. Compressor clutch coils, o-rings, and hose materials all degrade faster at sustained high ambient temperatures. A hose that might last 25 years in a temperate climate may fail in 15 here. Inspect all hose ends and o-rings at every service.
Condenser efficiency loss. The condenser sits in front of the radiator and relies on airflow to reject heat. In UAE conditions, high ambient temps, frequent slow traffic, occasional sand and dust, condenser performance degrades faster. A clean condenser in good condition is not optional; a partially blocked or corroded one will push system pressures beyond design limits and accelerate compressor wear.
Compressor cycling load. In UAE summer, the AC compressor runs almost continuously rather than cycling on and off as it would in cooler climates. This increases wear on the clutch, bearings, and internal components. If the clutch is slipping or engaging roughly, address it before it becomes a full compressor failure.
Musty evaporator odour. UAE humidity spikes, particularly during the winter and spring months — combined with a system that runs hard in summer creates ideal conditions for microbial growth in the evaporator. If the smell is present, treat the evaporator with an appropriate antibacterial treatment and ensure the drain is clear.
Diagnosis: Step by Step
Before touching anything:
- Confirm refrigerant type via service port size
- Note whether the clutch engages at all when AC is switched on
- Check for visible oily residue at all fittings and hose ends
With gauges:
- Low side: 25-45 psi at idle in normal operation (R134a)
- High side: 150-250 psi depending on ambient temperature
- Both sides low: low refrigerant charge or leak
- Low side high, high side low: failed compressor (not pumping)
- Both sides high: condenser not rejecting heat, check airflow, fan operation, condenser condition
- Rapid clutch cycling: low charge, pressure switch fault, or electrical issue
Vacuum test:
- Pull system to vacuum and hold for minimum 30 minutes
- Any rise in pressure indicates a leak that must be found and fixed before charging
Parts Required
Mandatory
| Part | Notes |
|---|---|
| Compressor — R4 type | Continued in production through the R134a transition; same bracket fit across the platform |
| Orifice tube (with screen) | Use 1994-spec design for retrofit compatibility |
| Accumulator / Receiver-Drier | Use 1994-spec, R134a-compatible port |
| Condenser | Required if original won't flush clean, or as part of full retrofit |
| R134a Service Port Adapter Kit | Required when converting from R12 threaded fittings |
| Refrigerant oil — PAG or Ester | Confirm type with your compressor supplier before ordering |
| O-ring kit — HNBR type | R134a-compatible; replace every o-ring at every joint opened |
| High-pressure cutoff switch | 1994+ spec, required for correct R134a operation |
| AC flush solvent | Dedicated AC flush only — never brake cleaner or carb cleaner |
Recommended While You Are In There
| Part | Notes |
|---|---|
| Inline suction-side filter | Extra insurance against debris the flush missed |
| Serpentine belt | Confirm correct match to R4 compressor pulley |
| Blower motor and resistor | Inspect while the dash is accessible — replace if worn |
The OBScure Parts Kit

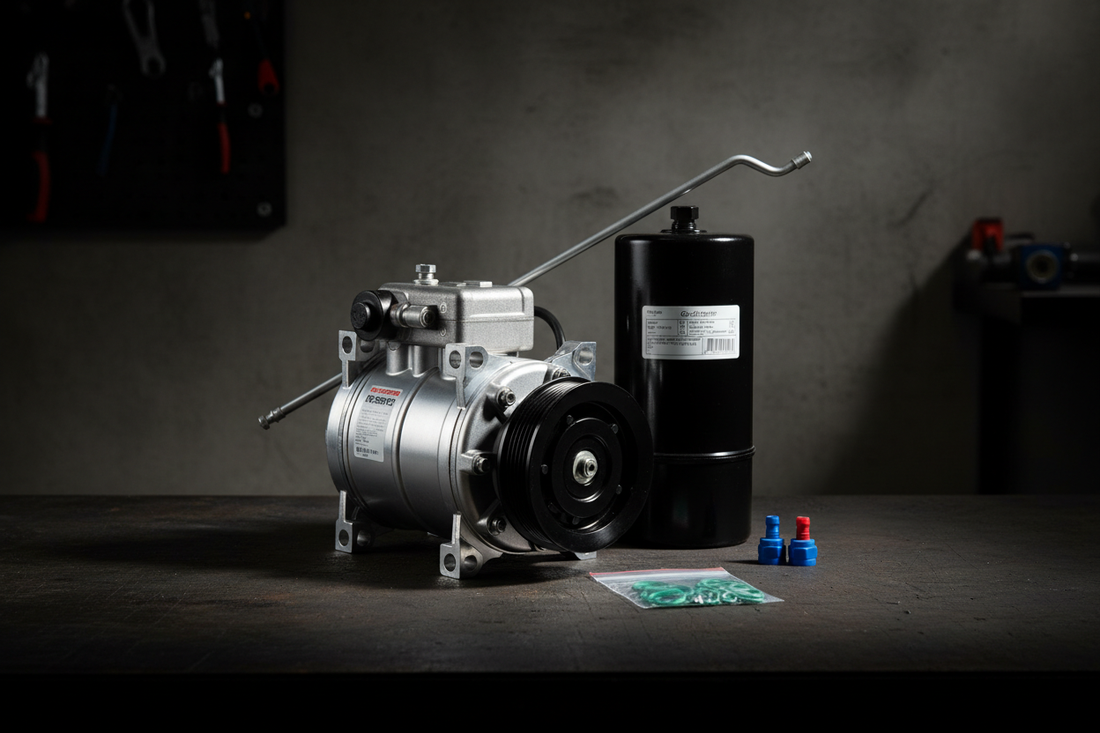

The AC system modernisation kit is available as a single sourced order, compressor, orifice tube, and accumulator/receiver-drier together, not as three unrelated parts. Refrigerant oil, o-rings, and the retrofit fittings are included. Fitting a new compressor without the other two after an internal failure is close to a guaranteed repeat failure. The kit is structured to prevent that.
GMT400 AC System Modernisation Kit — OBScure Parts →
Installation Overview
- Confirm whether the system is R12 or R134a using the port size and the table above, do this before ordering parts
- Have any remaining refrigerant properly recovered using the correct equipment. never vented to atmosphere
- Flush the condenser, both AC lines, and the evaporator core with dedicated AC flush solvent and compressed air, mandatory if the compressor failed internally
- Replace the compressor, orifice tube, and accumulator/receiver-drier together
- Replace the condenser if it won't flush clean, or as part of a full retrofit
- Fit R134a service port adapters if converting from R12 threaded fittings
- Replace o-rings at every joint opened, using HNBR-type rings rated for R134a
- Add the correct oil (PAG or Ester per your supplier's guidance), split between the compressor and accumulator as specified, not guessed
- Pull a vacuum and hold it to confirm no leaks before charging
- Charge with R134a at roughly 10-15% less than the equivalent R12 charge amount, and verify against expected pressures for ambient temperature
What to Tell the Mechanic
English:
Please confirm whether this system is R12 or R134a before ordering parts — don't assume from the model year alone. If the compressor has failed internally or seized, flush the condenser, both lines, and the evaporator core with proper AC flush solvent, then replace the compressor, orifice tube, and accumulator/receiver-drier together, not the compressor alone. If retrofitting from R12, fit the R134a service port adapters and use the correct oil — PAG or Ester — consistently across every component. Replace o-rings at every joint opened. Pull a vacuum and confirm it holds before the final charge, and reduce the R134a charge roughly 10-15% below the equivalent R12 amount.
Arabic:
يرجى التأكد أولاً مما إذا كان هذا النظام يستخدم غاز R12 أو R134a قبل طلب القطع، ولا تفترض ذلك بناءً على سنة الصنع فقط. إذا كان الضاغط قد تعطل داخلياً أو تجمّد، يرجى غسل المكثف وكلا الخطين ومبخر التكييف بسائل غسيل مخصص لأنظمة التكييف، ثم استبدال الضاغط وأنبوب التقييد ومجفف الرطوبة معاً، وليس الضاغط وحده. في حال التحويل من R12، يرجى تركيب مهايئات منافذ الخدمة الخاصة بـ R134a واستخدام نوع الزيت الصحيح — PAG أو Ester — بشكل ثابت في جميع الأجزاء. استبدل الحلقات المطاطية في كل وصلة يتم فتحها. اسحب الفراغ وتأكد من ثباته قبل الشحن النهائي، وقلّل كمية شحن R134a بنسبة تقارب 10-15% عن الكمية المكافئة لغاز R12.
UAE Sourcing
Refrigerant recovery must be handled by a workshop with the correct recovery equipment. Verified workshop recommendations for Sharjah Industrial Area, including AC specialists confirmed to handle proper R12-to-R134a retrofits with genuine refrigerant recovery and flush procedures, will be listed here shortly, checked in person rather than pulled from a directory.
Page last updated: September 2026. Part specifications and fitment data apply to GMT400 platform vehicles as listed in the compatibility table above.
