Land Rover Defender V8 Air Conditioning: Failure, Diagnosis & Service Guide - UAE & GCC Edition

Why AC Failure on a Defender V8 Is Particularly Problematic in the UAE

The Defender was designed as a working agricultural and military vehicle. Air conditioning was never central to its brief — it was added as a concession to markets that needed it, not engineered from the ground up as a priority system. In a temperate climate, a marginal AC system is an inconvenience. In the UAE, where summer temperatures regularly exceed 45°C, it makes the vehicle genuinely dangerous to use for anything beyond short journeys.

The V8 petrol engine compounds this. It runs hotter than the diesel variants, the engine bay is more crowded, and the compressor is working against a higher ambient heat load. These are not trucks that forgive a poorly maintained or underpowered AC system.

The classic Defender shape ran from 1984 to 2000. AC fitment, compressor type, and refrigerant varied across this period — this guide covers what you actually need to know before ordering parts.

Compatibility — Does This Guide Apply to Your Defender?

Variant	Years	Engine	Covered
Defender 90 V8	1984–2000	3.5 / 3.9 Rover V8	Yes
Defender 110 V8	1984–2000	3.5 / 3.9 Rover V8	Yes
Defender 130 V8	Limited numbers	3.5 / 3.9 Rover V8	Yes (same AC architecture)
Defender 200Tdi / 300Tdi / TD5	—	Diesel	Not the focus of this guide

Important: Not all Defenders left the factory with AC. Retrofitted systems are common in the GCC market, and the quality of those retrofits varies considerably. If you're buying a used Defender in the UAE and the AC was added aftermarket, treat the system as unknown until inspected.

The Refrigerant Situation — R12 vs R134a

Build Period	Factory Refrigerant	Notes
Pre-1993 (approx.)	R12	Sanden or Nippondenso compressor, R12 system
1993–1995 (transition)	R12 or R134a	Verify by service port — don't assume
1995–2000	R134a	Factory R134a, standard service

The same rule applies here as on any vehicle of this era: R12 is no longer manufactured, stocks are expensive and diminishing, and if the system is being opened for any reason, conversion to R134a is the correct decision. Chasing R12 top-ups on a daily-use vehicle in the GCC is not a long-term strategy.

How to confirm: R134a service ports are larger than R12 ports. Check before ordering anything.

Know the Signs — Common Failure Symptoms

• Compressor clutch not engaging, or engaging with resistance — seized or failed
• Rapid clutch cycling — low charge, pressure switch fault, or electrical issue
• Weak or warm airflow — low refrigerant, failed expansion valve, or compressor wear
• Musty smell from vents — evaporator microbial growth, worsened by UAE humidity cycles
• Oily residue at hose ends or fittings — refrigerant leak, typically at aged o-rings
• System won't hold vacuum — leak in circuit, find it before charging

Defender-Specific Failure Points

Compressor — Sanden SD507 / SD508 and Nippondenso variants. The Defender V8 was fitted with Sanden and Nippondenso compressors depending on year and market. Both are rebuildable and well-supported. The Sanden units in particular have a strong aftermarket. Failure is typically from age, seal degradation, or running low on oil in poorly maintained systems.

Hose condition. Defender AC hoses are old. Original barrier hose technology from this era is significantly more permeable than modern hose designs, meaning slow refrigerant loss is almost guaranteed on an original system. Inspect every hose end for oily residue and treat any hose over 15 years old as a replacement candidate.

Condenser. The Defender's condenser sits in an exposed position and takes more stone, sand, and dust damage than most vehicles. Fin damage and partial blockage are common. A condenser that won't flush clean after a compressor failure should be replaced, not persisted with.

Expansion valve (TXV). The classic Defender uses a thermostatic expansion valve rather than the orifice tube found on the GMT400. Failure symptoms are similar — warm air, abnormal pressures — but the replacement procedure differs. This is a common wear item on older systems and worth replacing during any major AC service.

Receiver-drier. Should be replaced any time the system is opened. Non-negotiable. A saturated drier in a UAE climate will contaminate a new compressor faster than in cooler conditions.

Electrical — compressor clutch relay and pressure switches. Defender electrics of this era are not their strongest suit. Before condemning the compressor, check that the clutch is actually receiving power. A failed relay or pressure switch is a much cheaper fix than an unnecessary compressor replacement.

UAE-Specific Failure Patterns

Engine bay heat load. The Rover V8 runs warm, and in UAE summer the under-bonnet temperature on a standing vehicle can be extreme. This accelerates seal and hose degradation beyond what the original design anticipated. Any rubber component in the AC system on a Defender that has lived its life in the Gulf should be treated as a replacement candidate regardless of visible condition.

Dust and sand ingestion. The Defender is often used off-road in the UAE, and the condenser is poorly protected from debris. Regular inspection and careful cleaning of condenser fins is maintenance, not optional.

Retrofit system quality. A significant proportion of Defenders in the GCC had AC retrofitted, either in-market or before import. These systems range from professionally installed to genuinely dangerous. If the provenance of the AC system is unknown, a full inspection before any top-up or service is essential. Charging a leaking or contaminated system makes it worse, not better.

Genuine vs aftermarket — the Defender position. Britpart is the benchmark for this platform. It is not the cheapest option, but it is proven, widely used, and the failure rates are known and acceptable. The cost of a second compressor failure in UAE summer — the labour, the flush, the downtime, the risk of being stranded — makes the saving on a cheap compressor look very different in retrospect. Buy the part once.

Diagnosis — Step by Step

Before touching anything:

• Confirm refrigerant type via service port size
• Check whether clutch engages when AC is switched on (and whether it's receiving power if it doesn't)
• Inspect all visible hose ends and fittings for oily residue

With gauges (R134a):

• Low side: 25–45 psi at idle, normal operation
• High side: 150–250 psi depending on ambient temperature
• Both sides low: low charge or leak
• Low side high, high side low: compressor not pumping
• Both sides high: condenser not rejecting heat — check airflow and fin condition
• Rapid cycling: low charge or pressure switch fault

Vacuum test:

• Pull to vacuum and hold minimum 30 minutes
• Any pressure rise indicates a leak — find it before charging

Parts Required

Mandatory for Compressor Failure / Full Service

Part	Notes
Compressor — Sanden SD507/SD508	Confirm compressor type before ordering — some cars had Nippondenso.
Receiver-drier	Replace any time system is opened.
Expansion valve (TXV)	Defender uses TXV, not orifice tube.
Condenser & Fan Assembly	BTR3700. Replace if won't flush clean.
O-ring kit — HNBR type	Mastercool 91339. R134a-compatible; replace every joint opened.
R134a service port adapter kit	Required if converting from R12 fittings — included in rebuild kit.
Refrigerant oil — PAG 46	Standard for R134a Sanden compressors; confirm with supplier.
AC flush solvent	Dedicated AC flush only.

Recommended While You Are In There

Part	Notes
AC hoses	Any hose over 15 years old is a replacement candidate.
Compressor clutch relay	Standard Motor Products RY-727. Check before replacing the compressor — a common cheap fix.
Drive belt	Inspect and replace if worn.

Complete Kit

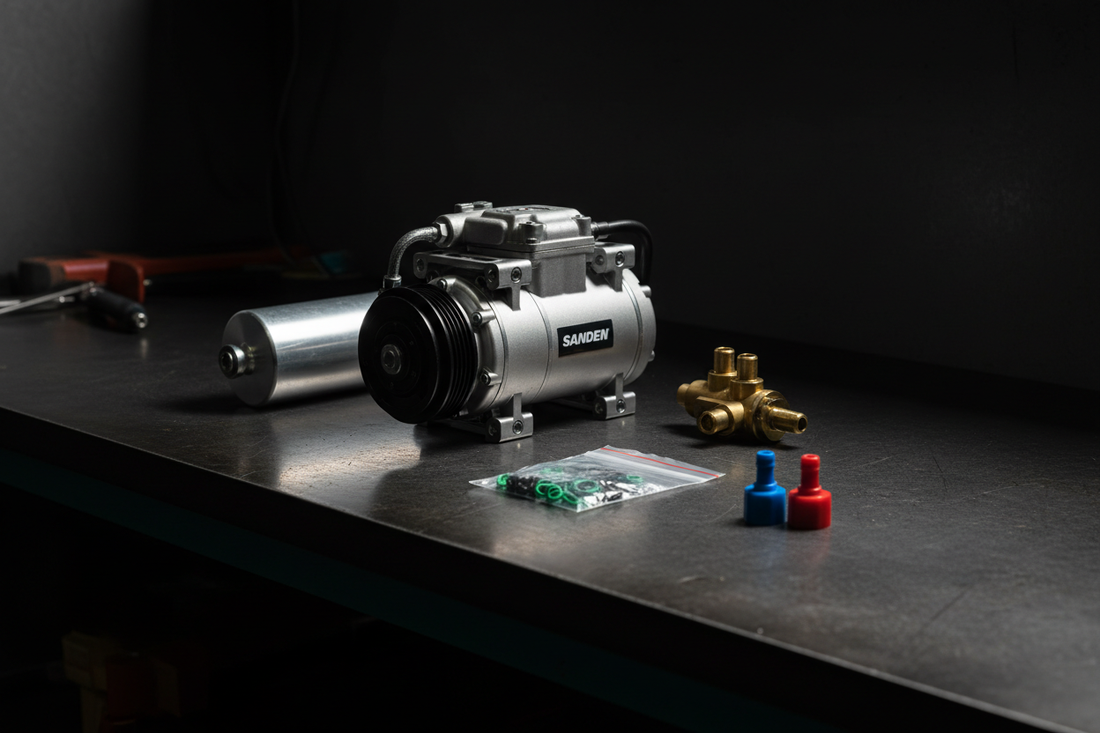

All mandatory components in one order: AC System Rebuild Kit — Defender V8 (compressor, receiver-drier, TXV, condenser/fan assembly, o-rings, port adapters, hose set).

A Note on Parts Quality

There is always a cheaper option for every component on a Defender AC system. Some cheaper parts perform adequately. Many do not, and the consequences of a failed compressor in UAE summer — the labour cost, the flush requirement, the risk of repeat failure, the possibility of being stranded — make the initial saving look very different in retrospect.

Britpart is the trusted benchmark for this platform. Where an alternative is listed, it has been selected on the basis of known reliability, not price. Cheap parts are frequently the most expensive parts you can buy.

Installation Overview

1. Confirm refrigerant type via service port before ordering parts
2. Have refrigerant properly recovered — never vented to atmosphere
3. If compressor failed internally: flush condenser, both AC lines, and evaporator with dedicated AC flush solvent
4. Replace compressor, receiver-drier, and expansion valve together
5. Replace condenser if it won't flush clean
6. Fit R134a port adapters if converting from R12
7. Replace all o-rings at every joint opened, HNBR type
8. Add correct oil to compressor and receiver-drier per supplier specification
9. Pull vacuum and hold — confirm no leaks before charging
10. Charge with R134a and verify pressures against ambient temperature

What to Tell the Mechanic

English:
"Please confirm refrigerant type before ordering parts — check the service port size, don't assume from the year. If the compressor has failed internally, flush the condenser, both lines, and the evaporator with proper AC flush solvent before fitting anything new. Replace the compressor, receiver-drier, and expansion valve together. Replace all o-rings at every joint opened. Pull vacuum and confirm it holds before charging."

Arabic:
"يرجى التحقق من نوع غاز التبريد قبل طلب القطع — تحقق من حجم منفذ الخدمة ولا تفترض من السنة. إذا تعطل الضاغط داخلياً، اغسل المكثف وكلا الخطين ومبخر التكييف بسائل غسيل مخصص قبل تركيب أي شيء جديد. استبدل الضاغط ومجفف الرطوبة وصمام التمدد معاً. استبدل جميع الحلقات المطاطية في كل وصلة تم فتحها. اسحب الفراغ وتأكد من ثباته قبل الشحن."

UAE Sourcing

Refrigerant recovery must be handled by a workshop with proper recovery equipment. Verified workshop recommendations for Sharjah Industrial Area will be listed here shortly.

Page last updated: September 2026. Applies to Land Rover Defender 90/110/130 V8 petrol, classic shape 1984–2000.
