What Alternator Does Your Mercedes-Benz R107 SL Need? A Practical Guide to Selection, Upgrading, and Fault Diagnosis

Introduction

The Mercedes-Benz R107 SL and SLC, produced from 1971 to 1989, is a simpler alternator story than its contemporaries. The platform did not change dramatically over its production run, the engines are well understood, and the charging system, while aged, is not particularly complex. What it is, however, is old. And old Bosch electrics operating in the heat of the UAE and GCC require the same considered approach as any other classic vehicle in this climate.

This guide covers what the R107 came with, how to identify a failing alternator, and what a sensible replacement or upgrade looks like for a car that is increasingly being used as it was intended: driven, not preserved.

What Alternator Did the R107 Come With From the Factory?

The R107 used Bosch alternators across its entire production run, which is one of the reasons the platform has aged relatively well electrically. Bosch units of this era are robust, well-documented, and straightforward to service and replace.

Early production (1971 to approximately 1980)
Earlier R107s used a Bosch 55A unit, which was standard for the era. On a car with no aftermarket accessories, this remains adequate for basic use, but it leaves minimal headroom.

Later production (approximately 1980 to 1989)
Later cars received uprated Bosch units, typically 70 to 80A depending on market and specification. The 280SL, 380SL, 450SL, 500SL, and 560SL variants are all well-served by this hardware in standard trim.

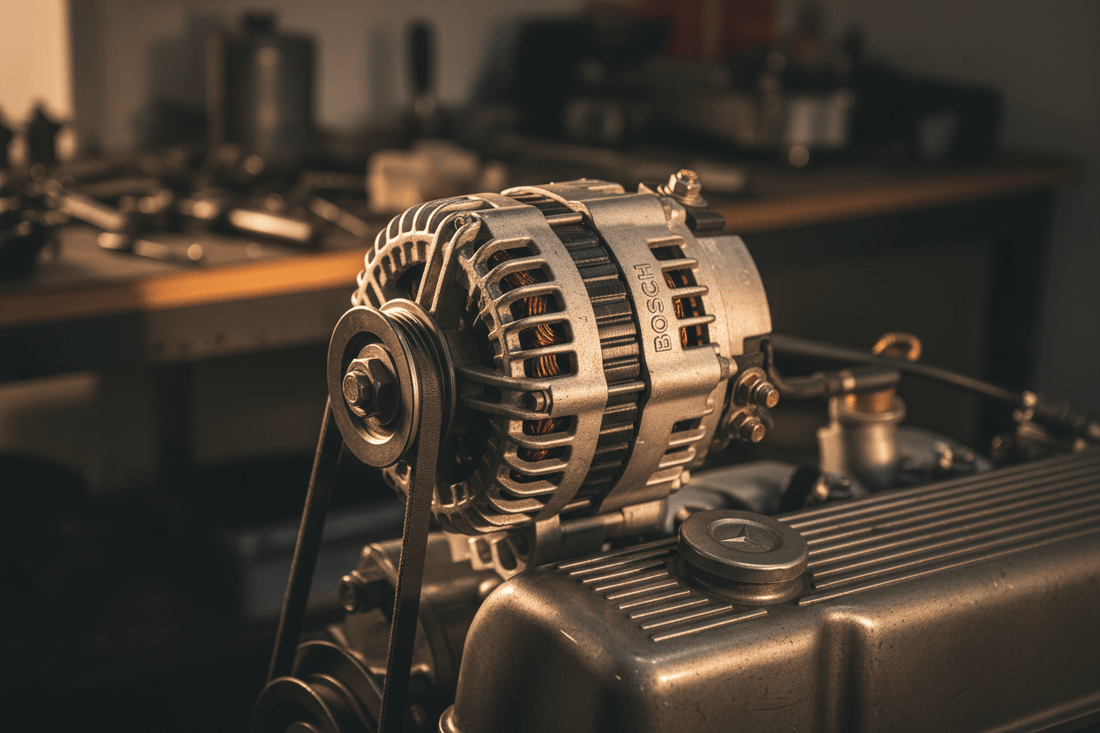

The alternator is straightforward to identify: a round Bosch unit mounted on the driver's side of the engine, driven by a V-belt. Part numbers are well-documented and cross-reference cleanly to current replacement units.

Diagnosing a Failing Alternator

The R107's Bosch alternators are generally reliable, but age, heat, and the neglect that comes with vehicles that have passed through multiple owners take their toll. The failure modes are predictable.

Symptoms to look for:

• Battery warning light illuminated on the instrument cluster
• Voltmeter reading below 13.5V at idle with accessories off
• Battery that discharges between drives despite being a known good unit
• Dimming dashboard and interior lighting at idle
• Burning smell from the engine bay, particularly in hot weather (diode pack failure in high ambient temperatures)

How to test:
With the engine running and accessories off, a healthy R107 charging system should read 13.8 to 14.4V at the battery terminals. The R107's voltage regulator is external on earlier cars and integrated on later units. A reading above 15V points specifically to regulator failure rather than the alternator itself.

The V-belt check:
Before condemning the alternator, confirm the V-belt driving it is in good condition and correctly tensioned. The R107 uses a simple V-belt arrangement that is easy to inspect and adjust. A slipping or glazed belt is a common cause of intermittent charging faults on cars that have been lightly used or stored.

Heat in the GCC context:
The R107 engine bay is relatively well ventilated compared to some of its contemporaries, but sustained operation in 40 to 48°C ambient temperatures still elevates under-bonnet temperatures well beyond the design envelope. Diode pack failure is the most common heat-related alternator fault on the R107 in this climate. If you are experiencing repeated early failures of otherwise good replacement units, operating temperature rather than unit quality is likely the cause.

Do You Need an Upgrade?

For most R107 owners, the honest answer is no. The R107 is not a platform that naturally lends itself to heavy auxiliary electrical loading. It is a grand tourer, not an expedition vehicle, and the factory 70 to 80A unit on later cars is adequate for a vehicle running standard electrics with perhaps a modern head unit and a dashcam.

Where an upgrade becomes relevant:

• If you are running a significant aftermarket audio system with amplification
• If you have added auxiliary lighting beyond standard specification
• If you are running a modern engine management system on a modified or restomod build
• If you are simply replacing a failed unit and want the security of additional output headroom for a car that will be driven regularly in GCC heat

Factory replacement (55 to 80A depending on year): the right answer for most R107s
A quality Bosch or Denso replacement at factory specification is the correct choice for a standard or near-standard car. Genuine Bosch units or quality OEM-equivalent replacements are widely available and straightforward to fit. We stock direct-fit replacement units for R107 applications. [link to product]

High-output replacement (90 to 120A): for modified or heavily accessorised builds
For a restomod R107 with modern engine management, upgraded audio, and auxiliary lighting, a high-output unit in the 90 to 120A range using the same Bosch mounting configuration is available and worthwhile. This is a niche requirement for the R107, but the hardware exists. [link to product]

A Note on the Voltage Regulator

On earlier R107s, the voltage regulator is a separate external component mounted on the firewall. These are a common failure point and are frequently the actual cause of charging system faults misattributed to the alternator. Before replacing the alternator on a pre-1980 R107, test and if necessary replace the voltage regulator first. It is a significantly cheaper and simpler repair.

On later cars with integrated regulation, the regulator fails as part of the alternator assembly, but rebuilt units with new regulator and diode pack are widely available and represent the most cost-effective repair path.

Summary

The R107's alternator story is uncomplicated. The factory Bosch units are good hardware, the replacement market is well-served, and most owners will find a quality like-for-like replacement is all they need. The main watchpoints specific to GCC operation are diode pack heat sensitivity and the external voltage regulator on earlier cars, both of which are straightforward to address.

Keep the V-belt in good condition, use a quality replacement unit with a high-temperature specification if you are driving the car regularly in UAE summer conditions, and the R107's charging system will give you no further trouble.

---

This guide is part of the Obscure Parts Mercedes-Benz R107 repair and maintenance series. If you have questions about alternator selection for your specific build, get in touch.
