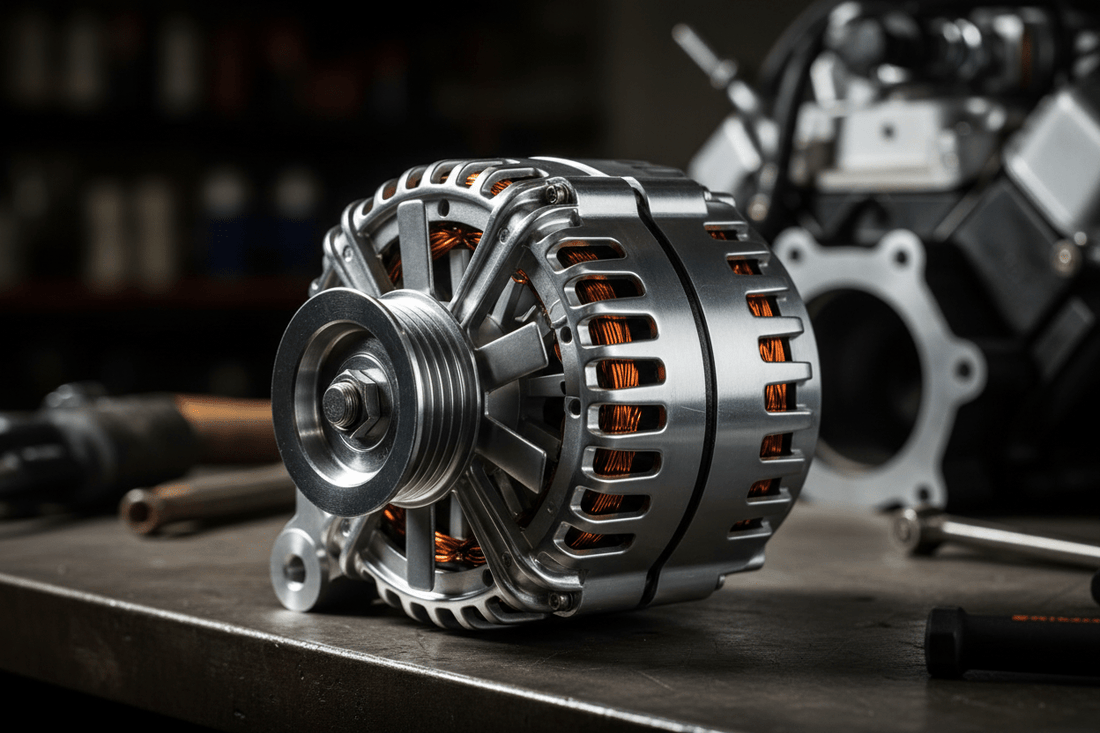

What Alternator Does Your GMT400 Need? A Practical Guide to Selection, Upgrading, and Fault Diagnosis
Share
Introduction
The GMT400 Chevrolet and GMC C/K truck platform, built from 1988 to 1999, was engineered at a time when a truck's electrical demands were modest. Air conditioning, a radio, some lights, and a heated rear window were about as complex as it got. Wind forward to today and the same chassis is being asked to run winches, dual battery systems, refrigeration, LED light bars, communication equipment, and aftermarket engine management, all while idling in 45°C UAE summer heat.
The alternator sitting behind your serpentine belt was not designed for any of that. This guide will help you identify what you have, diagnose whether it is failing, calculate what you actually need, and make a sensible decision about whether a 110A, 200A, or 400A unit is right for your build.
What Alternator Did the GMT400 Come With From the Factory?
The GMT400 platform spans two distinct alternator generations depending on year and engine.
1988 to 1993 (Delco-Remy SI Series)
Earlier C/K trucks used the Delco-Remy SI (Systems Integrated) series alternator, typically a 100A unit on V8 applications. These are externally regulated, identifiable by the four-terminal plug on the rear, and are considered the weaker of the two factory designs. If you are running an early truck and have not already upgraded, you are working with the platform's least capable charging hardware.
1994 to 1999 (CS130/CS144 Series)
From 1994, GM transitioned to the internally regulated CS-series alternators. The CS130 (named for its 130mm stator diameter) was standard fitment, typically rated at 105A. Higher-output variants, the CS144, appeared on heavy-duty applications and fleet vehicles, rated up to 145A. These are more robust, easier to find in high-output configurations, and the basis for most aftermarket upgrade programmes.
To confirm which unit you have: check the rear of the alternator for the terminal configuration. CS-series units have a single multi-pin connector and a charge output stud. SI units have a distinctive four-wire plug. Your VIN and RPO codes (on the sticker inside the glovebox) will also confirm the factory specification.
Diagnosing a Failing Alternator
Before spending money on an upgrade, confirm the alternator is actually the problem. GMT400 charging system faults are frequently misdiagnosed. A failing battery, corroded ground strap, or worn serpentine belt can present identically to alternator failure.
Symptoms to look for:
- Battery warning light illuminated, or voltmeter reading below 13.5V at idle
- Dimming headlights at idle that brighten when you rev the engine
- Electrical gremlins including intermittent gauge behaviour and random warning lights
- Battery that will not hold a charge despite being a known good unit
- Burning smell from the alternator or surrounding area (a heat-related failure mode, covered below)
How to test:
With the engine running and all accessories off, a healthy GMT400 charging system should read between 13.8V and 14.8V at the battery terminals. Drop below 13.5V and the alternator is underperforming. Above 15V suggests a voltage regulator fault.
Load-test the system: switch on your headlights, blower motor, and any auxiliary loads. If voltage drops below 13V under load, your alternator is either failing or undersized for your current electrical demand.
A note on heat in the GCC context:
This is where GMT400 ownership in the UAE and broader Gulf region differs significantly from the US experience that dominates most online resources. Alternator windings, voltage regulators, and diode packs are all rated to operate within defined thermal limits. Ambient temperatures of 40 to 48°C, combined with under-bonnet heat soak during slow desert driving or urban idling, dramatically accelerate bearing wear and diode failure. If you are running a stock alternator and experiencing repeated early failures, heat is almost certainly a contributing factor, not just age or mileage.
Calculating Your Electrical Load: Do You Actually Need a High-Output Alternator?
This is the most important question, and the one most GMT400 owners skip. An alternator upgrade is only justified if your actual electrical demand exceeds your current alternator's output capacity. Here is how to work it out.
Typical factory load (GMT400 with standard equipment):
- Engine management and ignition: 20 to 30A
- Headlights (halogen): 15A
- Blower motor (high): 15 to 20A
- Fuel pump: 10A
- Various sensors and ECU loads: 5A
Total baseline: approximately 65 to 80A
That leaves a standard 105A CS130 with roughly 25 to 40A of headroom for accessories, which sounds adequate until you start adding aftermarket equipment.
Common accessory loads to factor in:
| Accessory | Approximate Draw |
|---|---|
| Electric winch (under load) | 300 to 450A peak, 80 to 120A sustained |
| Compressor fridge (12V, 50L) | 4 to 8A |
| LED light bar (200W) | 17A |
| Air compressor (tyre inflation) | 30 to 40A |
| CB/UHF radio | 5 to 10A |
| Auxiliary battery charging | 20 to 40A depending on state of charge |
The winch question specifically:
A winch is the single biggest variable in this calculation, and also the most misunderstood. No alternator produces 400A continuously. What matters is the sustained load over a recovery scenario: if you are winching yourself out over a 60-second pull at 80A sustained, while your lights, fridge, and auxiliary battery are also drawing current, a 105A alternator will not cope. The battery absorbs the peak, but repeated deep cycles without adequate recharge will shorten its life significantly.
Which Alternator Do You Actually Need?
Stock output (100 to 105A): adequate for a standard build
If you are running your GMT400 as a daily driver with minimal accessories, the factory CS130 or a quality direct replacement is sufficient. We stock direct-fit replacement CS130 units for 1994 to 1999 C/K trucks.
160 to 200A: the sensible overlanding upgrade
This is the right answer for the majority of builds running a dual battery system, a compressor fridge, a light bar, and occasional winch use. The CS144 platform accommodates high-output units in this range as direct bolt-on replacements. Powermaster and DB Electrical both produce well-regarded 160 to 200A CS-series units for the GMT400 application. We carry selected units in this range.
250 to 400A: serious expedition and competition builds
If you are running a full expedition setup with sustained winch use, a comprehensive auxiliary electrical system, and a battery management system across multiple batteries, a unit in the 250 to 400A range makes sense. Mechman and Nations Alternators are the two most respected names at this output level for the GM CS platform, with units available in high-temperature winding specifications that are well suited to GCC operating conditions.
What to look for regardless of output level:
- High-temperature rating: non-negotiable for UAE and GCC operation
- Strong idle output: a high-output alternator that only delivers rated current above 3,000rpm is not useful on a vehicle crawling dunes at low revs. Check the manufacturer's output curve before buying
- Bearing quality: the single most heat-sensitive component in the assembly
- Internal regulation: maintain this on CS-series upgrades
Dual Battery Considerations
If your electrical demands justify a high-output alternator, they almost certainly also justify a dual battery system. The alternator upgrade and the second battery are complementary, not alternatives.
A second battery allows your winch, fridge, and lighting to draw from a dedicated auxiliary bank without threatening engine start capability. Your alternator then maintains charge across both banks, requiring either a Battery Management System (BMS) or an intelligent isolator to prevent the auxiliary bank from dragging down the starter battery.
A full guide to dual battery system design for the GMT400 is worth a dedicated piece. Look out for that shortly.
Summary
The GMT400's factory alternator is adequate for a standard truck. The moment you start building for overlanding, recovery, or auxiliary electrical loads, particularly in the heat of the UAE and GCC, you should treat the charging system as a system to be designed, not just a component to be replaced like-for-like.
Identify what you have, test it properly, calculate your actual load, and then make a deliberate decision about output rating with thermal performance as a key selection criterion.
This guide is part of the Obscure Parts GMT400 repair and maintenance series. If you have questions about alternator selection for your specific build, get in touch.
